What Should Buyers Check Before Approving Steel Structure Drawings

This step is critical for overseas buyers to approve the drawings because once the parts have been fabricated, drilled, welded, painted, and shipped, it costs much more money and time to change the design after the fact.

Many buyers just look at how big the building is when they’re buying it – like length, width, and height. If you’re buying steel building structures, you should not sign off on your plans unless you’ve checked out the layout of the building, door placement, the location of columns (support), how the roof will drain, where the steel building will be placed, what it’ll be made from (materials), how it should be constructed (installation instructions), and what you’ll want to use it for in the future.

This guide will help you know the right things to look for before you sign off on your prefab steel building drawings, such as warehouses, workshops, factories, and agriculture buildings, to name a few.

————————————————————————

Why Drawing Approval Matters Before Production

The construction of steel structure buildings generally involves the fabrication of materials according to approved fabrication drawings. These fabrication drawings provide specifics for shear and drill cuts, welding locations, and assembly markings for each component within the building and for packing and installing each component.

If the drawings are approved with wrong information, the project may face problems such as:

• Wrong building size
• Door positions not matching site access
• Columns blocking forklift routes or equipment
• Insufficient clear height
• Incorrect roof drainage direction
• Missing office, mezzanine, or crane requirements
• Roof and wall materials not matching the order
• Difficult installation on site
• Extra cost for modification or replacement

For this reason, buyers should treat drawing approval as a project risk-control step, not just a formality.

————————————————————————

1.Check Building Length, Width, and Height

The first thing to confirm is the basic building size.

Buyers should carefully check:

• Building length
• Building width
• Eave height
• Ridge height
• Interior clear height
• Span direction
• Column spacing
• Roof slope

The height of the building should be built to accommodate the actual usage of the project. A warehouse, for instance, needs to have sufficient space between its floor and ceiling, so storage racks are able to be placed along with forklifts, trucks, and future equipment to move around the warehouse. Workshops may require additional height to accommodate machines and ventilation or even production lines that run through the building.

A building constructed with inadequate height can limit the day-to-day running of the organisation. However, where there is excessive height, this can lead to increased steel weight, more wall material and thus an increased total cost.

————————————————————————

2.Confirm Door and Window Positions

Door and window positions should match the actual operation of the building.

Before approving drawings, buyers should check:

• Main entrance position
• Roller shutter door size
• Sliding door size
• Personnel door position
• Window location
• Loading and unloading direction
• Truck access
• Equipment access
• Emergency access, if required

Warehouses need large doors that line up with the loading bays and where the forklifts go and where the trucks go. Workshop buildings need doors that are wide enough for the machines to go in and out and for the raw materials and products to go in and out.

Incorrectly placed doors can result in daily operational challenges regardless of whether the steel frame itself has been built properly.

————————————————————————

3.Review Column Layout and Clear Interior Space

Column layout has a direct impact on usable space.

Buyers should check whether steel columns will affect:

• Storage rack layout
• Forklift turning space
• Production line arrangement
• Equipment installation
• Vehicle access
• Loading area
• Internal traffic flow
• Future layout changes

A good steel structure design provides both engineering strength and functional internal space. When designing or providing a steel structure will improve storage and production capacities, but you must base your final span and column layout on your structural calculations and your project requirements.

When building either a warehouse or a workshop, you should not just be asking “what the size of the building is” but also what is the actual usable floor area you are getting?

————————————————————————

4.Confirm Crane, Mezzanine, Office, or Special Requirements

If the building is going to have an overhead crane and/or a mezzanine floor and/or an office area and/or equipment foundation and/or a special production area, the requirements must be verified before the start of production.

Important items include:

• Crane capacity
• Crane span
• Lifting height
• Crane beam position
• Mezzanine location
• Office layout
• Stair position
• Equipment opening
• Ventilation or exhaust area
• Reserved space for future expansion

These requirements affect the steel frame design, column size, beam size, bracing system, and sometimes foundation design.

If these needs are added after production, the modification cost may be much higher.

————————————————————————

5.Check Wind Load, Snow Load, and Project Location

Steel structure drawings should match the project location and local environmental conditions.

Buyers should confirm whether the drawings consider:

• Project country and city
• Wind load
• Snow load
• Seismic requirements, if applicable
• Rainfall conditions
• Coastal or humid environment
• Local construction requirements

The design of a steel building in a dry inland location will differ from a steel structure located by the seashore or in an snowy, windy, or industrial climate.

If you do not have verified information regarding the wind or snow loads that will be applied to your building, you may receive lower quotes. However, the structure may end up being designed for conditions that do not actually exist at your site.

————————————————————————

6.Review Roof Slope, Drainage, Gutters, and Downpipes

Roof drainage is often ignored during drawing approval, but it is very important for long-term building performance.

Buyers should check:

• Roof slope direction
• Gutter position
• Downpipe position
• Rainwater discharge direction
• Roof panel layout
• Roof overhang, if required
• Connection details around roof edges

Rainy areas can become a problem due to poor rainwater drainage system of the building roof which not only causes water leakage but also results in water accumulation on the roofs, which might create roof maintenance issues.

The roof drainage system of warehouse, workshop and factory buildings should be considered and designed along with site layout, road position, loading area and access and egress locations.

————————————————————————

7.Confirm Roof and Wall Materials

The roof and wall system should match the quotation and project requirements.

Buyers should confirm:

• Roof material type
• Wall material type
• Panel thickness
• Steel sheet thickness
• Insulation material
• Panel color
• Joint design
• Flashing and trim
• Gutters and downpipes
• Fasteners and accessories

Available material options may include:

• Color steel sheet
• EPS sandwich panel
• PU sandwich panel
• Rock wool sandwich panel
• Rock wool sandwich panel with PU sealing edge

The type of material you select to build must correspond to what the building will be used for and where it will be built. And how much insulation is required. and how much fire resistance do you need. and what budget are you working from?

If the plans are indicating a certain kind of material, but the vendor is quoting for a different one, buyers need to make sure which should be used before they approve the plans.

————————————————————————

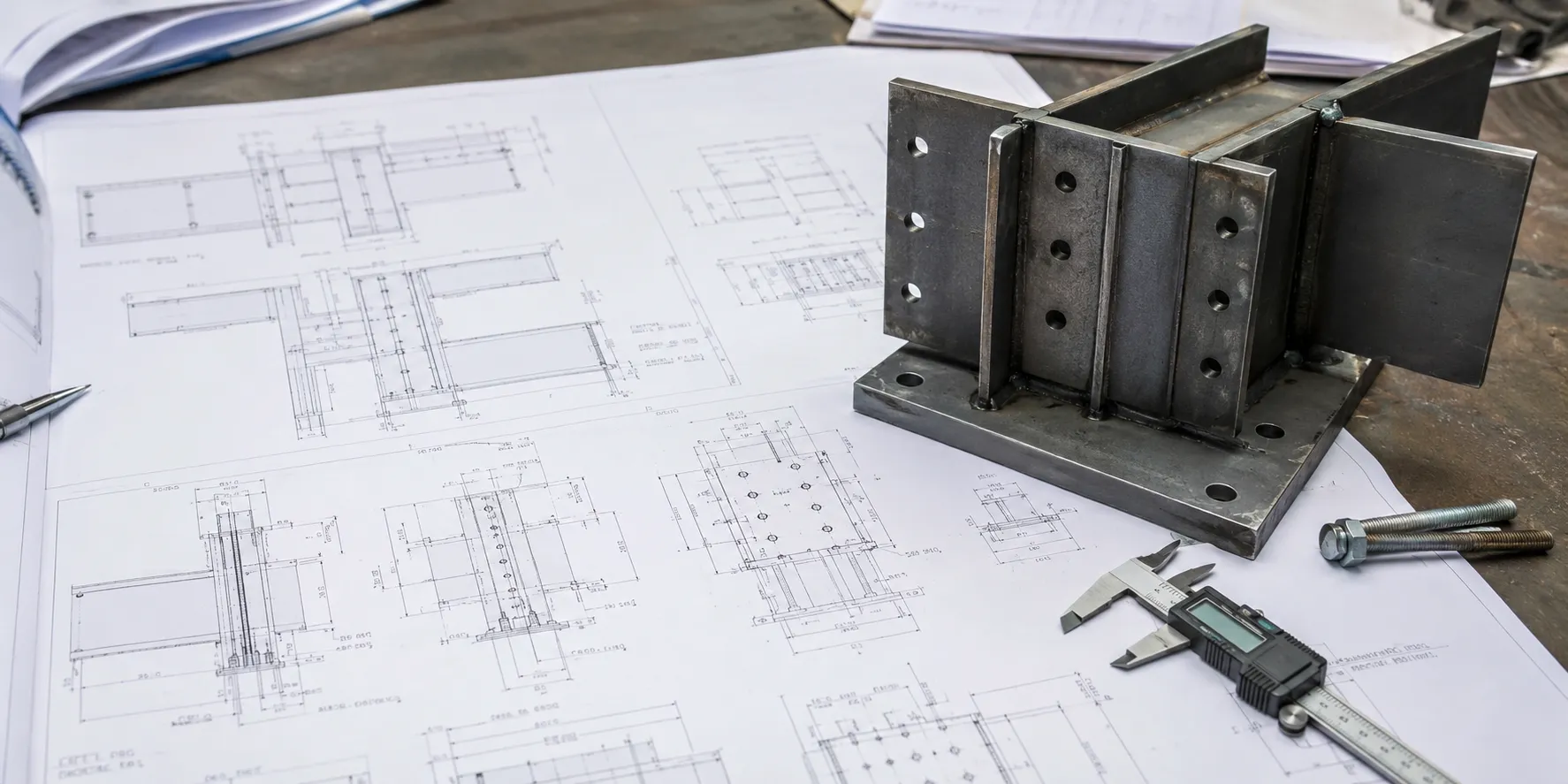

8.Check Bracing, Purlins, and Connection Details

Steel structure drawings should not only show the main frame. Buyers should also check the secondary structure and connection details.

Important items include:

• Roof purlins
• Wall purlins
• Bracing system
• Tie rods
• Connection plates
• Bolt layout
• Anchor bolts
• Base plates
• Door frame details
• Roof and wall connection details

These parts are important for installation and overall building stability.

Missing or unclear connection details may cause confusion during site assembly.

————————————————————————

9.Confirm Component Marking and Installation Drawings

For overseas steel structure projects, clear marking is very important.

Buyers should ask whether the supplier will provide:

• Installation drawings
• Component marking list
• Material list
• Bolt layout
• Roof panel layout
• Wall panel layout
• Packing list
• Loading photos, if required

Each steel part needs a legible mark to match the construction drawings,Steel parts, including columns, beams, purlins, and other supporting parts, are marked so that the local installation group can clearly identify such parts while developing the construction.

Good drawings will reduce the chances of mistakes during installation and will save time.

————————————————————————

10.What Should Buyers Ask Before Approving Drawings

Before confirming steel structure drawings, buyers should ask the supplier these questions:

• Does the building size match my site and use?
• Are the door positions and sizes correct?
• Will the column layout affect my storage or equipment?
• Is the clear height enough for operation?
• Are wind load and snow load considered?
• Are crane, mezzanine, or office requirements included?
• Does the roof drainage direction match the site?
• Are roof and wall materials consistent with the quotation?
• Are installation drawings and component markings provided?
• Can changes still be made before production?

A reliable steel structure supplier should help buyers review these key points before production starts.

————————————————————————

Common Drawing Approval Mistakes

Buyers should avoid these common mistakes:

• Approving drawings without checking door positions
• Only checking building size, not internal layout
• Forgetting future expansion requirements
• Not confirming crane or mezzanine loads
• Ignoring roof drainage direction
• Not checking roof and wall materials
• Approving drawings before confirming site conditions
• Assuming all accessories are included
• Not asking for installation drawings

A small drawing mistake may become a big installation problem later.

————————————————————————
