Quick Answer

Steel warehouses do not have one standard column spacing that works for every project. The column grid depends on warehouse use, building width, structural span, racking layout, forklift routes, door positions, equipment loads, crane requirements, foundation conditions and local design loads. Warehouses with the same external dimensions may require different column grids because their internal operations are different.

This warehouse column spacing guide explains the information that buyers, contractors and designers should coordinate before the structural layout and quotation are finalized.

Why Warehouse Column Spacing Matters

Column spacing influences both structural performance and daily warehouse operations. It affects the amount of usable floor area, the position of pallet racks, forklift circulation, door locations, equipment placement and the number and reactions of foundations. It can also affect fabrication weight, erection planning, construction cost and the practicality of future expansion.

Good steel building column spacing should therefore be developed from the operating layout and structural requirements together. Larger spacing is not automatically better or more economical. Increasing the distance between columns may reduce the number of internal supports, but it can also increase the structural demand on frames, beams, foundations and connections.

For a broader overview of warehouse structural systems and supply options, see steel warehouse buildings.

What Determines Steel Warehouse Column Spacing?

Several project inputs must be reviewed together before preliminary column lines can be established. Exterior dimensions alone do not provide enough information.

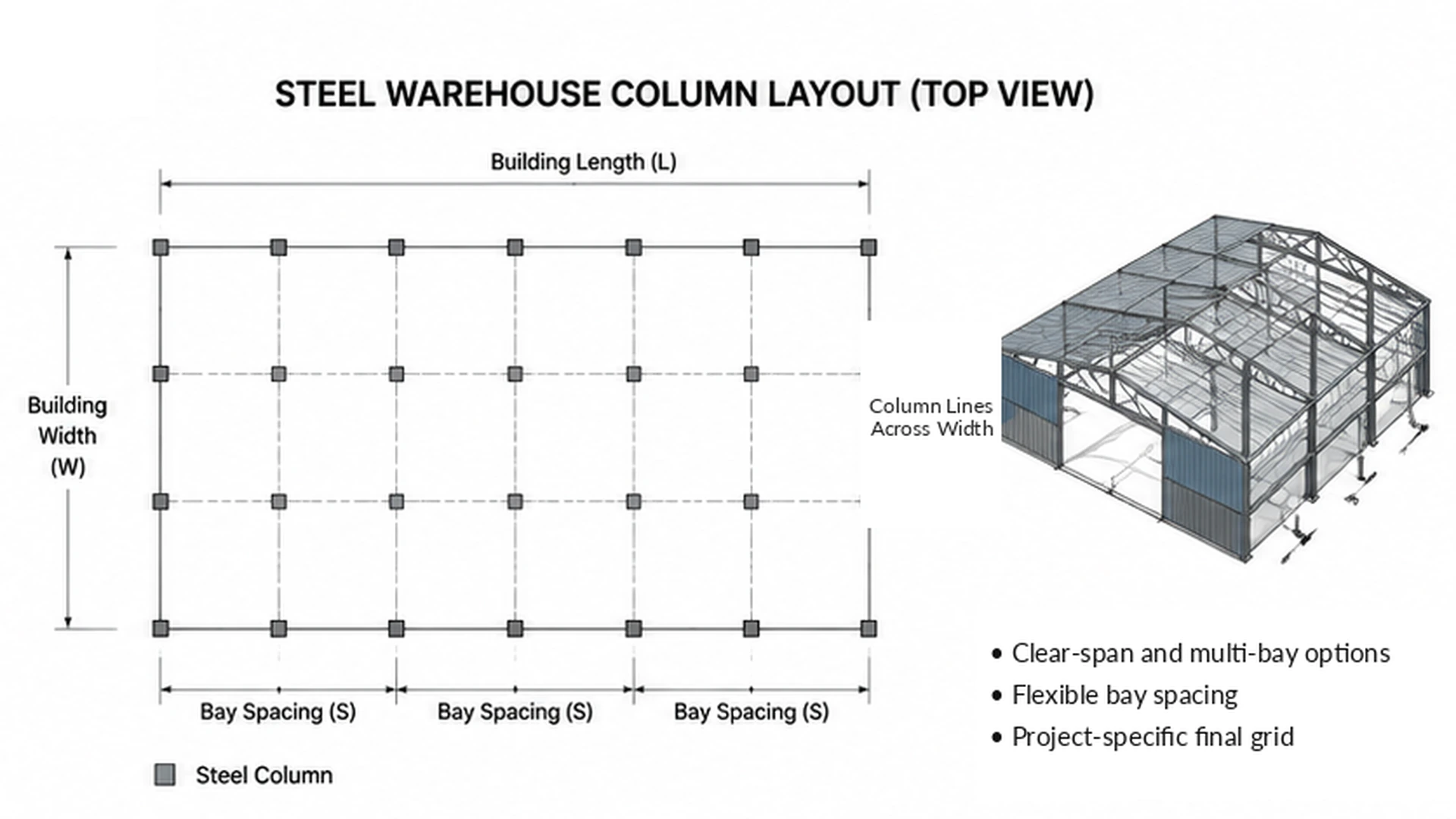

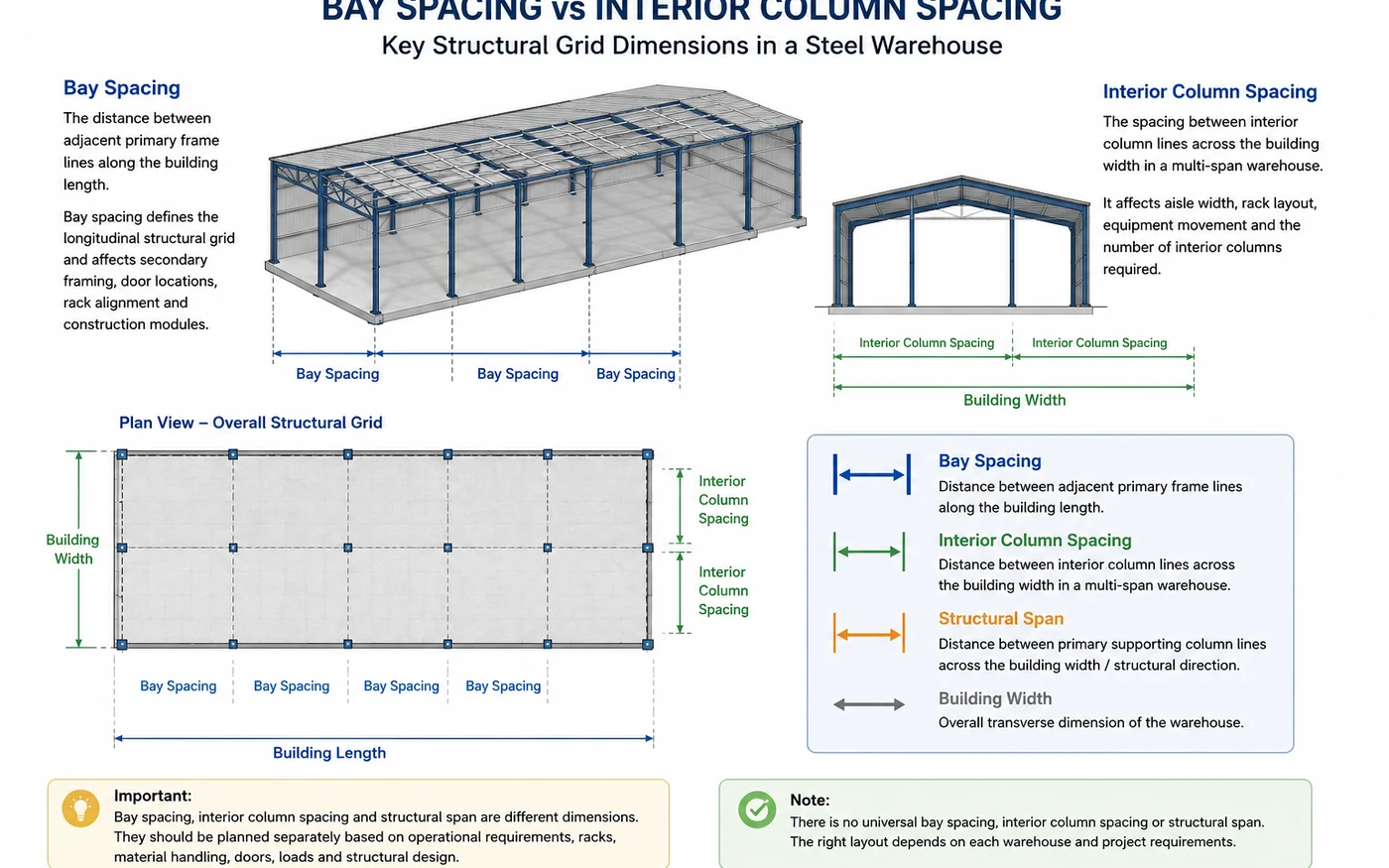

Building Width and Structural Span

The building width and required unobstructed working area help determine whether the warehouse should use a clear-span frame or a multi-bay structure with internal columns. Roof loads, frame geometry, eave height and the required internal clear height also affect the structural arrangement.

A clear internal area may be important for flexible storage or equipment movement, while a multi-bay layout may be practical when internal columns can align with racks, walls or low-traffic zones. The final arrangement remains project-specific and must be checked by structural calculation.

Warehouse Use and Operating Process

General storage, logistics operations, manufacturing support, cold storage, agricultural storage and mixed production-and-storage facilities do not use the floor area in the same way. Each activity creates different requirements for aisles, equipment, loading areas and access.

The operating process should identify where goods arrive, how they move through the building, where they are stored and how they leave. Columns should then be coordinated with these routes instead of being positioned from the exterior dimensions alone.

Local Design Loads

Wind, snow and seismic conditions influence the structural frame and foundation reactions. Roof-mounted equipment, suspended utilities and future solar panels may add further project-specific requirements.

These inputs can change frame sizes and column reactions even when the planned building geometry remains unchanged. Project location, applicable local requirements and available geotechnical information should therefore be confirmed before the column arrangement is treated as final.

Clear Span Warehouse vs Multi-Bay Warehouse

The clear span warehouse vs multi bay decision should be based on operations, structural efficiency, foundations and future flexibility. Neither layout is automatically preferable for all projects.

A clear span steel warehouse building may be appropriate when internal flexibility is a priority, but the structural and commercial implications still need project-specific review.

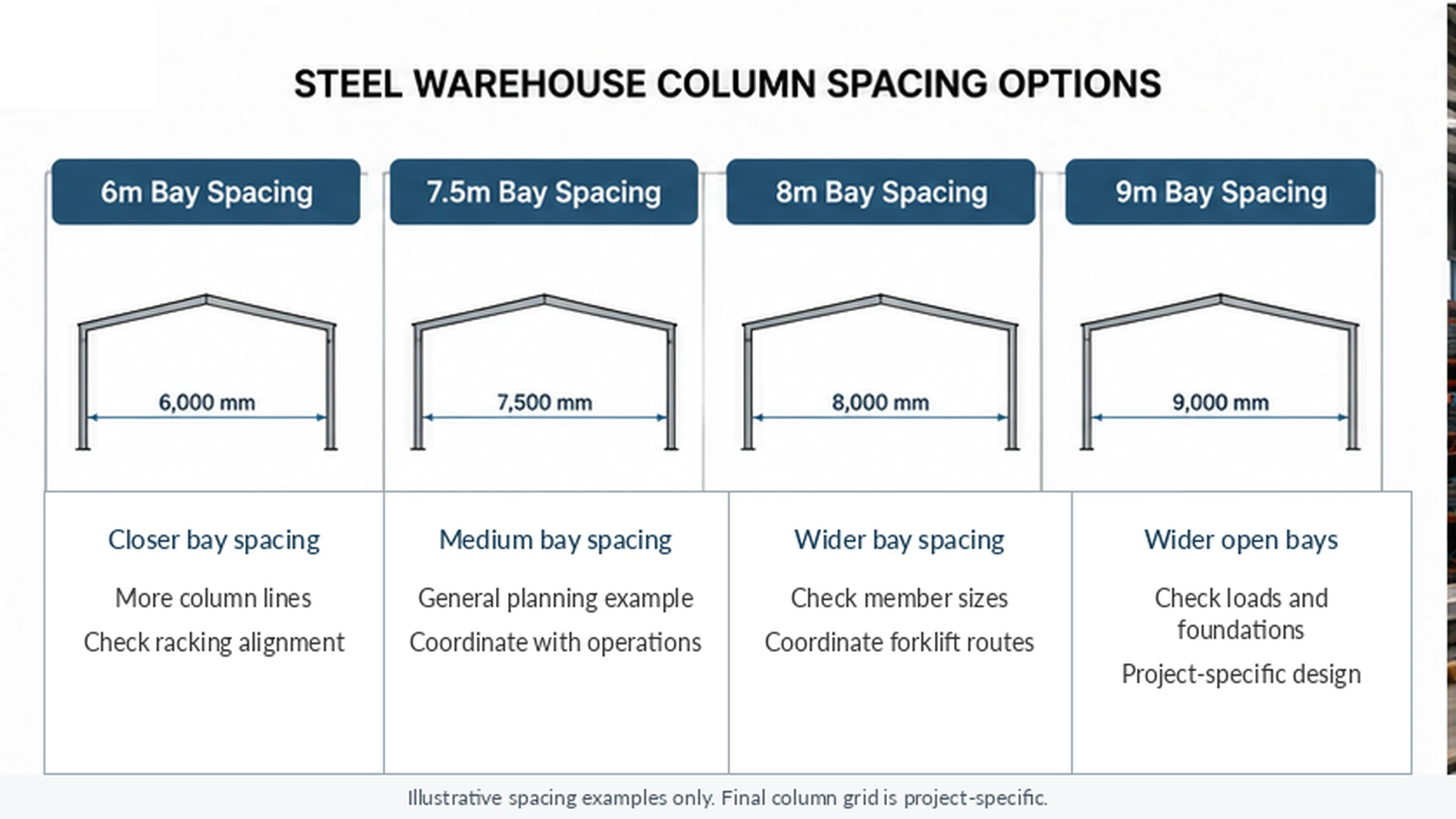

The spacing values shown are illustrative planning examples only. Final column spacing must be confirmed through project-specific structural design.

Racking Layout and Column Grid Coordination

Pallet racking should be considered before final column locations are confirmed. The warehouse column grid layout needs to coordinate rack rows, aisle width, rack-end clearance, fire access, sprinkler arrangements and the position of rack point loads.

Columns placed inside working aisles may reduce clear travel width or require additional protection. Columns near rack ends also need sufficient clearance for forklift movement and impact protection. A preliminary racking layout should be prepared before final steel column positions are confirmed, even when the rack supplier’s detailed design will be completed later.

Future changes should also be considered. If rack rows may be reconfigured, the structural grid should avoid unnecessarily limiting alternative storage arrangements.

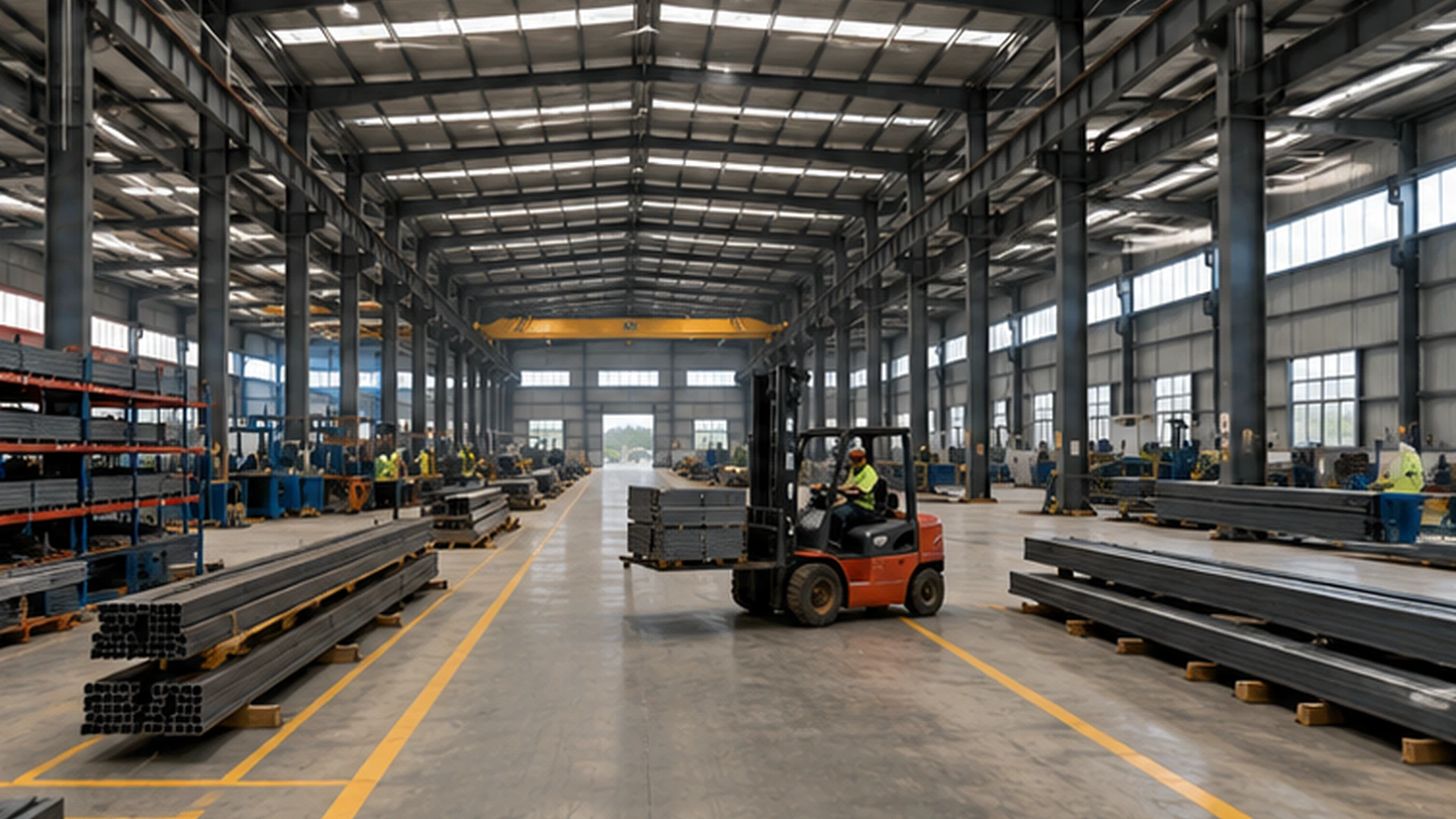

Forklift Routes and Material Handling

Main travel aisles, cross aisles, turning areas and receiving and dispatch routes should be mapped before the structural grid is finalized. Forklift type, pallet dimensions, turning requirements and operating direction can all influence whether a column line is practical.

Steel warehouse bay spacing should support material movement without placing columns in critical turning zones or narrowing routes used by forklifts and workers. Traffic separation and column protection should also be reviewed wherever vehicles operate close to structural supports.

For an example of coordinating receiving, storage and dispatch operations, see this logistics warehouse layout.

Doors, Loading Bays and Truck Access

Door clear width, clear height and position must be coordinated with structural column lines. The layout should consider loading docks, ground-level loading, truck approach, forklift access and the routes needed to deliver or replace large equipment.

Truck turning space and loading operations can influence which wall bays should remain open. Door positions must be coordinated with the structural column grid. They should not be moved freely after structural design is completed because changes may affect wall framing, bracing, foundations and cladding details.

Equipment, Cranes and Local Heavy Loads

Fixed machinery, service areas and overhead cranes can create local structural and access requirements. Crane columns, rail elevation, equipment clearance, lifting zones, maintenance routes and equipment foundations should be coordinated with the main warehouse grid.

A total equipment weight alone may not be enough. The design team may also need equipment support positions, operating loads and maintenance clearances. Projects combining storage and production can use an industrial steel factory building layout as a related planning reference, while the final crane and equipment design remains project-specific.

Foundations and Geotechnical Conditions

Column quantity and spacing affect column reactions, footing locations, anchor bolts and the coordination between civil and steel-structure work. Soil capacity, settlement conditions, groundwater and geotechnical recommendations may influence the practical foundation solution.

Wider column spacing does not automatically reduce total project cost because member weight and foundation reactions may increase. Conversely, adding columns can affect usable floor space and operating routes. Structural steel and foundation options should be compared on the same design basis before commercial decisions are made.

The warehouse cost guide explains why quotations based on different structural assumptions may not be directly comparable.

Planning for Future Expansion

Future expansion should be identified during preliminary layout planning. The intended extension direction may affect end-wall framing, side-wall column lines, roof drainage, utility routes and connection details.

Buyers should also consider whether future work may include additional loading doors, crane bays, production lines or storage zones. These requirements do not mean the future structure is automatically included in the current supply scope, but early coordination can reduce conflicts between current construction and later development.

Building proportions and expansion planning can also be reviewed with the warehouse size guide.

Information Needed for Preliminary Column Layout

A preliminary review normally requires:

• Project country and location
• Warehouse use
• Building length, width and height
• Required clear internal area
• Preliminary racking layout
• Forklift type
• Door sizes and positions
• Loading requirements
• Equipment layout
• Crane requirements
• Floor loads
• Future expansion direction
• Local wind, snow and seismic data
• Existing architectural, equipment or site drawings

If some information is not yet available, it should be identified as pending rather than replaced with an assumed universal value. The preliminary layout remains subject to structural calculation and applicable local design requirements.

Common Column Spacing Planning Mistakes

1. Choosing spacing before confirming warehouse use. A structural grid selected without understanding operations may obstruct storage or material flow.
2. Ignoring rack aisle alignment. Columns that conflict with rack rows or aisle clearances can reduce usable capacity.
3. Placing columns in forklift turning areas. These positions increase operational conflicts and may require additional protection.
4. Confirming doors after structural design. Late door changes can affect frames, bracing, foundations and wall systems.
5. Ignoring equipment maintenance access. Equipment may fit initially but remain difficult to service or replace.
6. Treating reference dimensions as final design. Illustrations can support preliminary planning but cannot replace structural calculations.
7. Forgetting future expansion. An uncoordinated extension direction may conflict with drainage, utilities, bracing or loading access.
