Primer vs Intermediate vs Topcoat: What’s the Difference? Do You Need All Three for Steel Structures?

So you have or are planning a steel structure project (e.g., Industrial Warehouse, Factory, Horse Arena or Agricultural Building) and, undoubtedly, you have heard of the term “three layer anti-corrosion system.” One of the most common questions we receive is what is the difference between a primer, intermediate coat & topcoat, and is it possible to skip a coat, or two, in order to save money?

It is a good question to ask. If you select the incorrect coating system, then your steel structure will rust prematurely and have a far shorter life expectancy due to the high costs of maintenance that you will incur later on. We will discuss the distinctions between the three types of coatings, their uses, and how each type of coating serves its purpose in simple terms in order for you to select the appropriate coating for your project.

First: Why Do Steel Structures Need Multiple Coating Layers?

Let us first establish an important fact about steel corrosion: it initiates at the surface and spreads to the inner layers of the steel. There are four essential requirements for any coating; they must have good adhesion, corrosion resistance, weather resistance and appearance or aesthetics. It is basically impossible to provide all of these through one coating.

So, the three-layer steel coating system are identical outfits, in the sense that every layer has a special functionality as well as being part of the ensemble. Yet the three together serve to vastly protect it and provide a shield that’ll last, approximately, 15-25 years.

The Core Differences & Functions of Each Coating Layer

1. Primer: The “Base Layer” of Your Steel Structure

Core Function: Bond tightly to steel and prevent corrosion from starting at the substrate

The primer layer comes into direct contact with the steel substrate. This primer is a fundamental layer of the anti-corrosion system. The entire formulation of the primer is primarily designed to form a strong bond to the steel substrate and prevent water and oxygen from contacting that substrate.

Key Properties:

• Exceptional Adherence: Penetrating the microscopic pores found on the surface of blast-cleaned steel to mechanically lock onto the surface of the steel.
• Active pigments resistant to corrosion: Contains active zinc powder or zinc phosphate type pigments etc., providing cathodic protection against corrosion even when the paint has been scratched lightly.
• Excellent penetration: Covers the roughness of properly prepared steel surfaces

Common Types: Epoxy zinc-rich primer, inorganic zinc-rich primer, epoxy phosphate primer

Recommended Dry Film Thickness (DFT): 40–80μm

What Happens If You Skip It:
All upper coatings will peel off prematurely. Corrosion will start immediately at the steel-coating interface, and the entire protection system will fail completely. This is the one layer you absolutely cannot skip.

2、Intermediate Coat: The “Barrier Layer” of Your Steel Structure

Core Function: Increase total coating thickness, block corrosive media, and bridge primer and topcoat

The intermediate layer is like the middleman of the paint system; a lot of people actually think it’s not necessary, but it is! There are two important jobs that the intermediate layer does that neither the primer nor the top coat can do.

Key Properties:

• High Construction Capacity: Helps in constructing DFT quickly by applying it in thicker layers.
• Excellent barrier attributes : provide a physical barrier that slows the entrance of water, oxygen, as well as chemicals.
• Outstanding Compatibility : Adheres to both dried primer and dried finish.

Common Types: High-build epoxy intermediate coat, micaceous iron oxide (MIO) epoxy coat

Recommended Dry Film Thickness (DFT): 80–150μm

What Happens If You Skip It:
If your total coating thickness is less than what is required for full protection, then basically whatever you apply on top of the primer is going to give you no long term protection. A small pinhole in your topcoat, will allow corrosive media get through the coating quickly to the primer. Many of the structures that are located in harsh conditions such as structures in coastal regions, or structures within industrial zones, have 1/2 their life expectancy when intermediate coats are skipped when doing coating work.

3. Topcoat: The “Shield Layer” of Your Steel Structure

Core Function: Provide weather resistance, UV protection, aesthetics, and chemical resistance

The topcoat is the outermost layer—the only one you see. Its job is to protect the underlying layers from the elements while giving your building its finished appearance.

Key Properties:

• Highly Resistant to UV Light – prevents powder formation and color fading.
• Highly Resistant to Weather – withstands any rain, snow, extreme heat/coolness, & wind.
• Resistant to Chemicals – does not break down by acids, bases, or other chemical waste.
• Flexible Appearance Options – can be produced in any RAL color and glossy, semi-glossy, or matte finish.

Common Types: Polyurethane topcoat, fluorocarbon topcoat, acrylic topcoat

Recommended Dry Film Thickness (DFT): 40–80μm

What Happens If You Skip It:
The primer and Intermediate coats will lose their whole structural value within 2-3 years because of the degrading effect caused by the ultraviolet light through oxidation. The steel would be below all aesthetic considerations.

Common Mistakes to Avoid

1、Using the wrong primer for the surface: Zinc-rich primers require properly blast-cleaned steel (Sa 2.5 level). Using them on poorly prepared surfaces will result in poor adhesion.

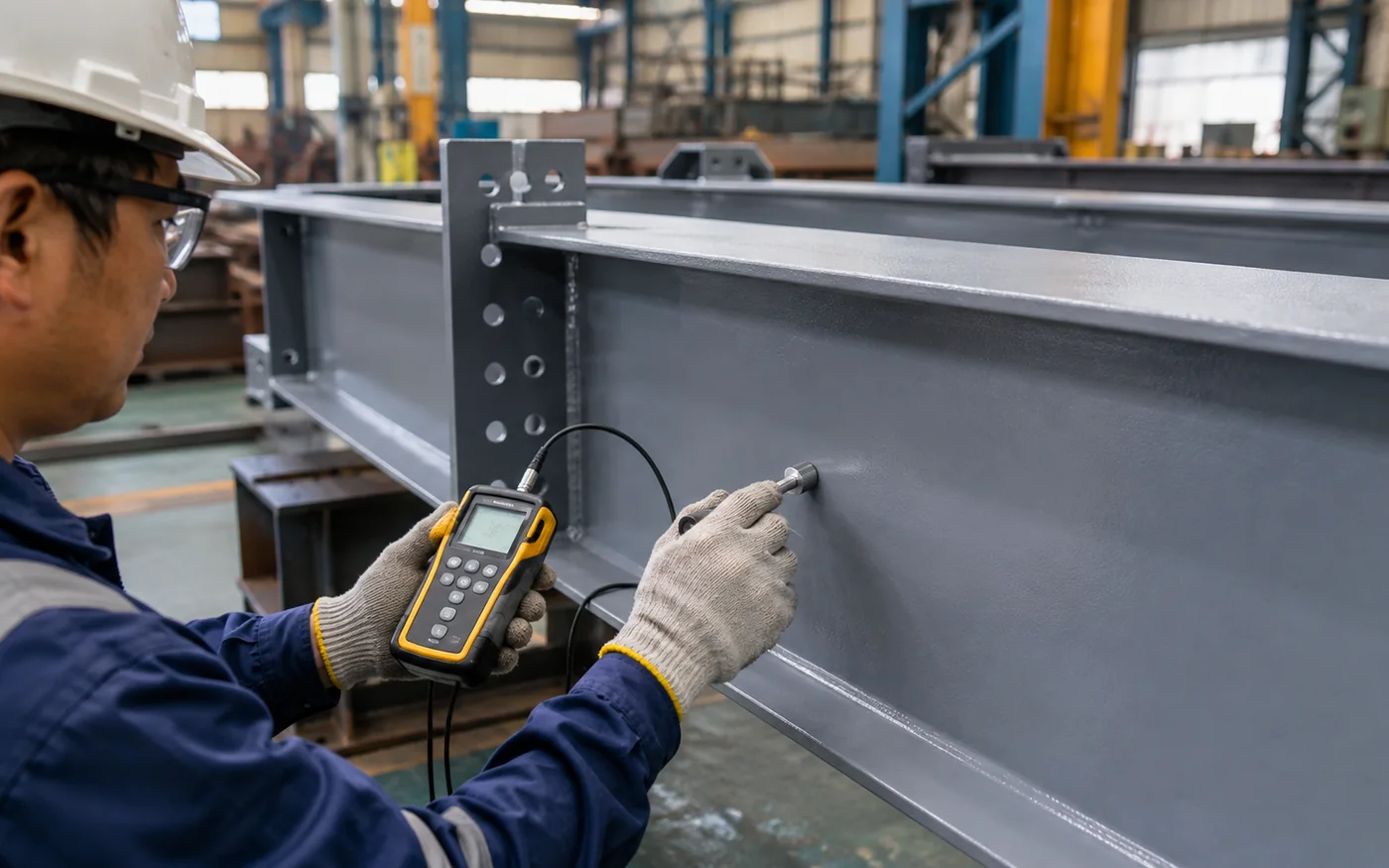

2、Applying too thin a coat: Always follow the manufacturer’s recommended DFT. A coat that’s too thin won’t provide adequate protection.

3、Mixing incompatible coatings: Using a topcoat that’s not compatible with your primer or intermediate coat can cause adhesion failure or wrinkling.

4、Skipping surface preparation: Even the best coating system will fail if applied to rusty, oily, or dirty steel. Surface preparation accounts for 70% of coating success.
